Multilayer Packaging Solutions & 4-Layer COEX Containers

Explore MISR multilayer packaging solutions and 4-layer COEX containers designed for agricultural, agrochemical and chemical packaging applications.

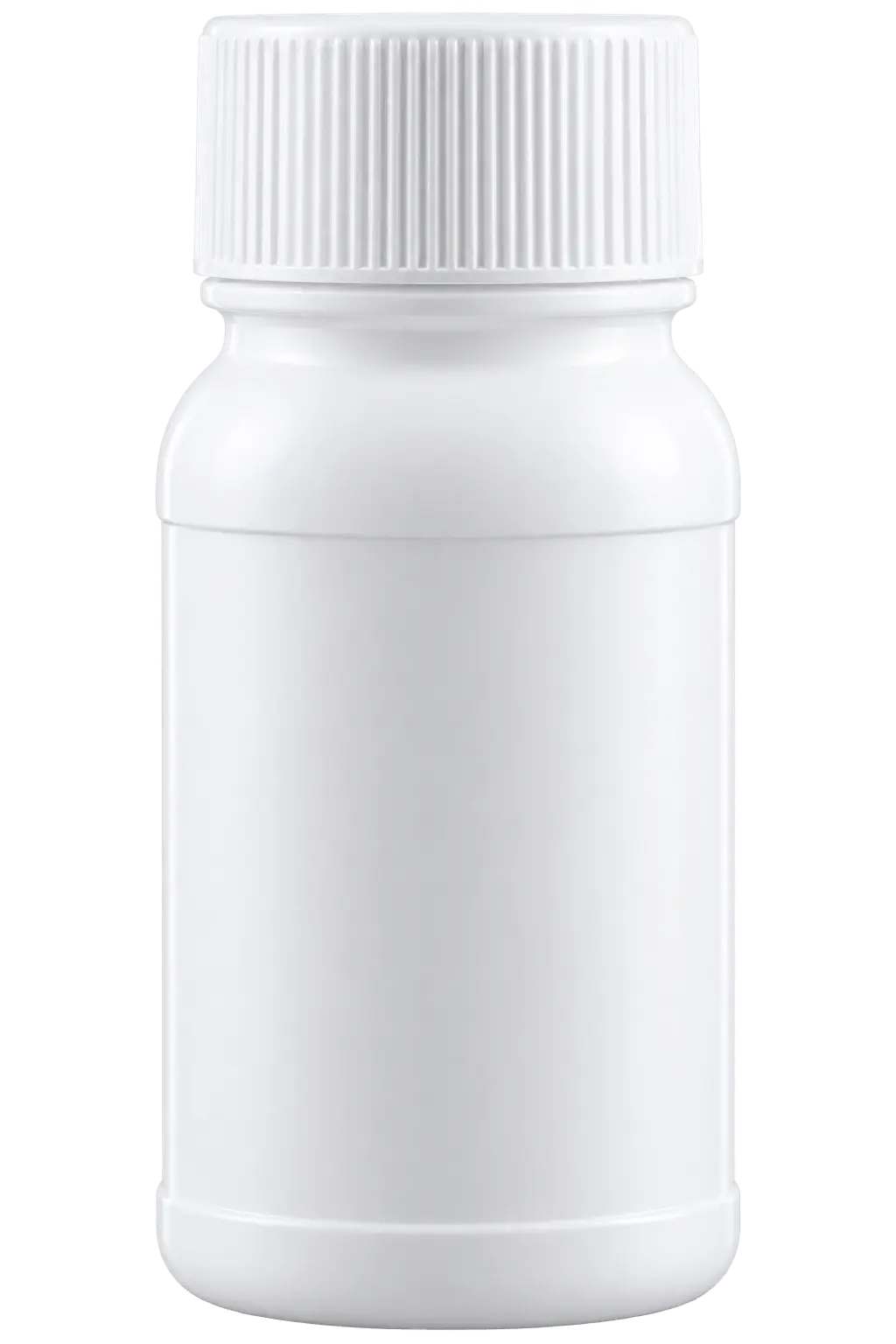

MISR AGRO-SHIELD 100 ML packaging bottle
Supplied product asset
100 ML
02 / PACKAGING TYPES

Packaging structures designed around your product.

HDPE and COEX solutions designed to meet different protection, resistance and performance requirements.

01 / COEX COEX

Multilayer Containers

Multilayer containers combining HDPE, PA and EVOH to provide enhanced protection against leakage and the permeation of gases and moisture.

  • High resistance to leakage and evaporation.
  • Enhanced protection for sensitive formulations.
  • Suitable for concentrated and volatile products.
Ideal for

Highly concentrated pesticides, hazardous compounds and air-sensitive products.

02 / HDPE HDPE

High-Density Polyethylene Containers

Durable, lightweight containers offering good chemical resistance with flexible forming and manufacturing options.

  • Good chemical resistance.
  • Lightweight and easy to transport.
  • Available in multiple sizes and shapes.
Ideal for

Agricultural pesticides, liquid fertilizers and agricultural oils.

03 / 4-LAYER COEX TECHNOLOGY

Four layers. Four roles. One integrated structure.

MISR's supplied technology specification presents a 4-layer COEX multilayer packaging structure combining barrier, bonding, structural and outer-layer functions.

LAYER ORDER Inside Outside
01
Barrier Layer

EVOH / PA

The barrier layer introduces dedicated barrier properties within the multilayer structure. EVOH and PA are identified in the supplied technology material as barrier-layer materials.

02
Tie Layer

Tie / Adhesive

The tie layer connects the relevant materials within the multilayer structure, helping maintain the integrity of the combined layers.

03
Structural Layer

Structural Substrate

The structural substrate contributes to the physical structure of the container and works together with the other layers as part of the complete package.

04
Outer Layer

HDPE

HDPE is identified as the outer layer in the supplied 4-layer COEX structure, forming part of the container's external material system.

Explore the complete COEX & IML technology →

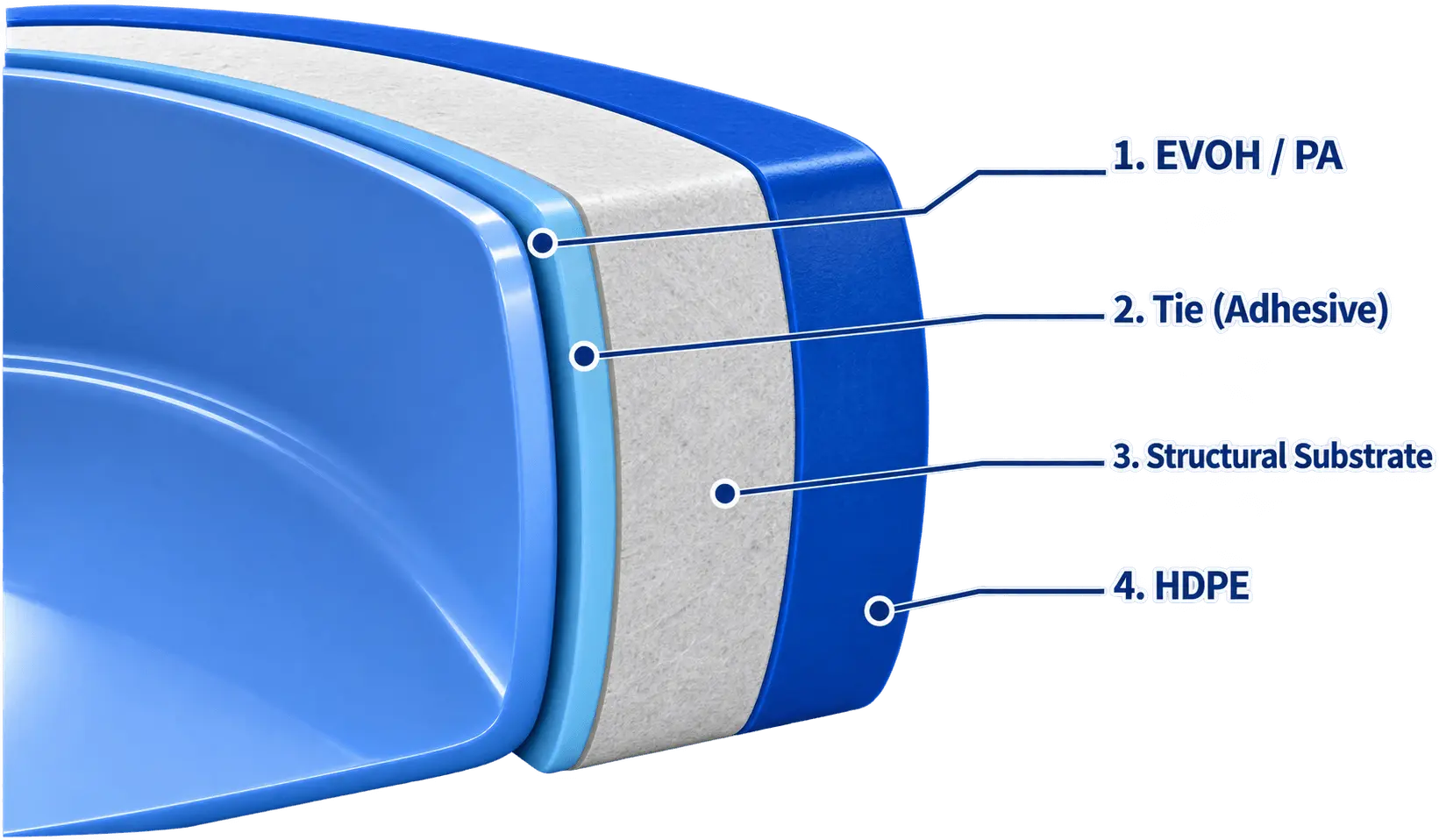

4-layer COEX multilayer packaging structure
04 / MATERIAL ENGINEERING

The right structure starts with understanding the product.

Packaging design should be considered around the formulation, filling requirements and intended storage and handling conditions. The multilayer approach provides a framework for combining different material functions within the same container.

01

Product formulation

02

Filling requirements

03

Storage & handling

04

Packaging structure

05 / APPLICATIONS

Packaging solutions for demanding applications.

Multilayer structures can be considered when packaging requirements extend beyond the role of a conventional single-layer container.

01

Agricultural & Agrochemical Packaging

Packaging solutions for agricultural formulations where material selection and package performance are important considerations.

02

Chemical Packaging

Packaging applications that require careful consideration of product compatibility and the material structure of the container.

03

Barrier-Focused Applications

Applications where barrier performance and permeation considerations influence the packaging structure.

04

Industrial Packaging

Multilayer packaging can be evaluated for industrial products with specific material, handling and protection requirements.

06 / IN-MOLD LABELING

Integrated labeling that becomes part of the package.

In-Mold Labeling (IML) places the label inside the mold during the manufacturing process, allowing the label to become an integral part of the finished package.

See IML technology & advantages →
In-Mold Labeling manufacturing process
01 Integrated label
02 Print quality
03 Durability
07 / THE RIGHT PACKAGING STARTS HERE

Your product determines the packaging requirement.

The appropriate multilayer structure depends on the product, formulation and intended application. Share your requirements with the MISR team to discuss the packaging approach that fits your application.
