Advanced Packaging Technology
4-Layer COEX Technology Integrated IML
Layer Order
Inside
→
Outside
01
Barrier Layer
EVOH / PA
02
Tie Layer
Tie (Adhesive)
03
Structural Layer
Structural Substrate
04
Outer Layer
HDPE
Labeling
Label / Sticker
A label or sticker is a printed element attached to a product or package to provide information, identify the product, and enhance the brand identity.
Label Types
Types of Labels
02
Printing
03
IML
01
Paper Sticker Problems
Easy Counterfeiting and Tampering
The label can be removed and replaced easily, especially in cases of pesticide counterfeiting.
Damage from Moisture, Solvents and Sunlight
The label is affected by moisture, solvents and sunlight.
Adhesive Failure and Label Falling
Adhesive may dry during storage and transportation, causing the label to detach.
Air Bubbles
Air bubbles may appear because of an uneven surface or incorrect application speed.
02
Printing Problems
Ink Damage from Solvents
Pesticide solvents can attack the ink and cause printed information to disappear.
Poor Ink Adhesion
The low surface energy of HDPE containers may cause poor ink adhesion without suitable surface treatment.
UV Fading
Exposure to sunlight can fade colors and make warnings less visible.
Wear of Printing and Data
Friction during transportation and handling may scratch the print and reduce data readability.
In-Mold Labeling
IML
IML (In-Mold Labeling)
A labeling technology in which the label is placed inside the mold during the manufacturing process, allowing it to bond permanently with the product and become an integral part of the package.
IML Advantages
Why IML?
Difficult to Counterfeit
The label is integrated with the package and is difficult to remove or replace.
Solvent and Chemical Resistance
Maintains data and colors when exposed to pesticides.
Moisture and Sunlight Resistance
Maintains label stability and color quality during storage and use.
No Adhesive
Eliminates adhesive drying, failure and label falling problems.
Consistent Appearance on Round Packages
Reduces bubbles, wrinkles and edge peeling.
Stable Package Printing
Supports Barcode, QR Code and DataMatrix printing suitable for machine reading.
Transportation and Storage Durability
Maintains package appearance and information during handling and storage.
High Code Accuracy
Maintains data and warnings during transportation and handling.
Excellent Stability on Round Packages
Prevents wrinkles, bubbles and edge peeling.
High Print Quality
Supports graphics, images, fine details, Barcode and QR Code.

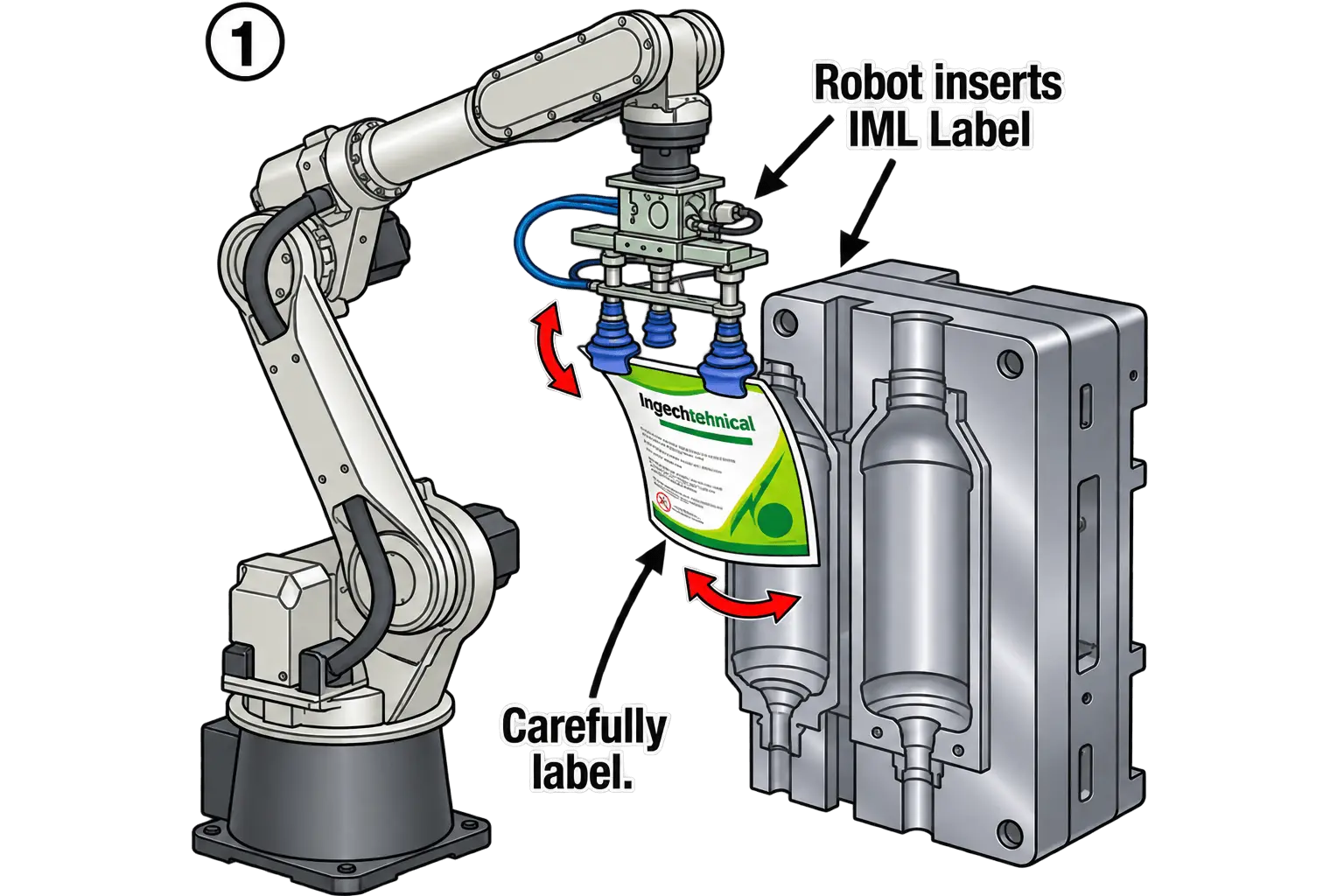

IML Manufacturing Process
Integrated labeling during package manufacturing.
01 — COEX
02 — IML
